The A80 is about half of the output of the A160, but has all of the functionality including manual and external control. The new innovative design of the A80 integrated the heatsink for the LEDs right into the body of the light allowing for high heat transfer without the need for a fan. The fanless design makes the module virtually silent in operation making them perfect for bedrooms, offices, and other areas where absolutely no noise may be required.
• Integrated heat sink • Dimmable • Kessil Logic • Color Tuneable • Canopy Mount included • Compatible with Spectral Controller • Connect multiple with unit link cables
Coverage and applications The coverage is 14-24” and is ideal for the following scenarios:
Small nano reefs with a medium light demand (14” recommended coverage at 4” above the water)
Entry level reefs with low light demand (20-24” coverage at 6” above the water)
Large fish only tanks with low light demand (24” coverage at 6-8” above the water)
Refugiums

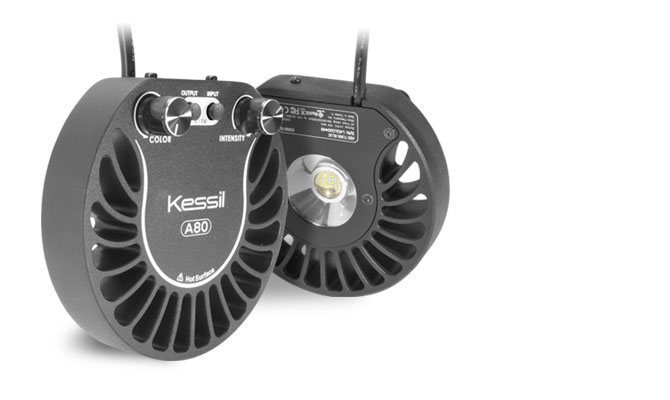

Multiple modules can be daisy-chained together with unit link cables for larger tanks.
Design Innovative heat dissipation allows for fanless, low maintenance, shell-shaped design. Advanced optics create smooth color mixing and a beautiful shimmer.

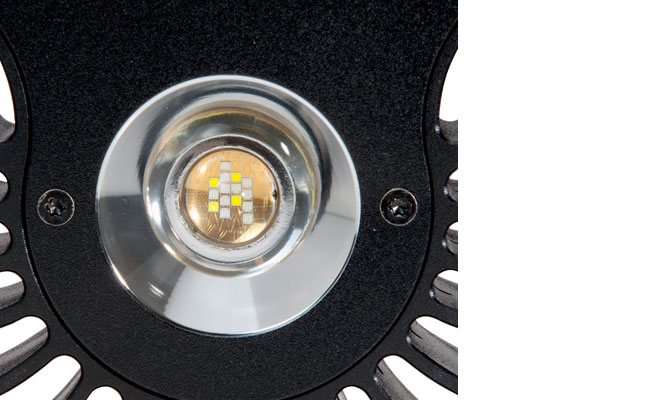

Dense Matrix LED Array The unique, efficient Dense Matrix LED array is built in-house and packs high-power and deep penetration onto a single small chip. Kessil has spent many years developing and researching what LEDs and has their unique array that they build in-house packing numerous diodes into an area no larger than a dime created a nice even blend of colors and producing a very broad spread of light. With such a tight pack of LEDs, the individual colors are thoroughly mixed before the light even leaves the optic lens reducing hot spots and providing uniform coloration throughout the tank.
Efficiency Utilizing our carefully designed optics and the Dense Matrix array, the A80 provides the most light per watt of any fixture have built so far.
Spectrums The result of years of research and testing, our aquarist-specific spectrums ensure vibrant coloration and prolific growth. 10,000-20,000k

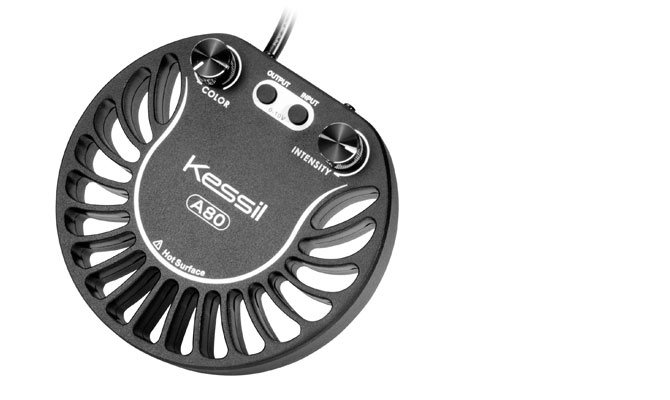

Advanced Controllability Use the dials on the fixture to quickly set the spectrum and intensity for a personalized look or use your favorite 0-10V controller. Kessil Logic maintains consistent output no matter the spectrum. Daisy-chain multiple lights for seamless control from a single source. With the Kessil Spectral Controller or your favorite aquarium controller that has a 0-10v reference, you can set complete day cycles that ramp up, down, while keeping a consistent output and spectrum.
Specification Dimensions - 1" Thick x 4.9" Outside Diameter Power Consumption - 15W Power Supply - 100-240V AC (input) 24v DC (output)

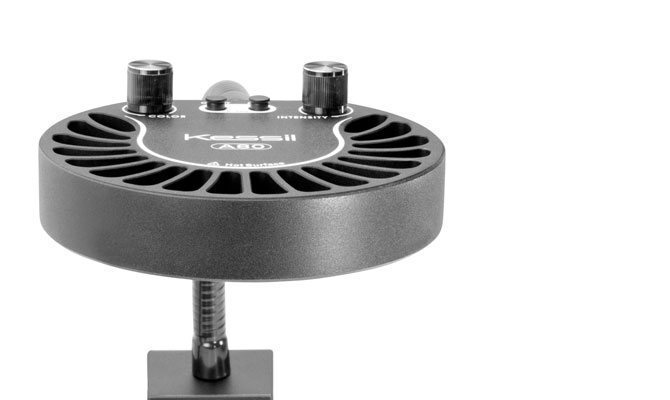

Mounting Mounting the A80 can be accomplished with the included Canopy Mounting Adapter or the Mini A-Series Gooseneck which can be purchased separately.
What's Included? 1x A80 Tuna Blue 1x DC Power Supply 1x Canopy Mounting Adapte
